Big hole diameter hydraulic Chuck 3 jaw chuck 8” lathe chuck for metal lathe

Short Description:

• Hydraulic operation standard.

• Clamping repositioning within 5um everytime.

• No change of precision when clamping within 3 million times.

• The eccentricity within 0.002g

• The external diameter beating within 0.02mm.

• Adopt the advanced alloy steel material

• With surface hardening treatment,to improve the accuracy and durability




Product Detail

Product Tags

Technical features:

• Durable and Reliable 3 jaw lathe chuck with excellent workability

• Wide variety of world standard chuck, high gripping force & stability suit to specific needs

• Standard manual chucks suit to high-mix low-volume manufacturing

• The short cylinder connection confirm to the GB, and the customer do not need to change the structure of the lathe but need a flange which is the same size of the chuck, and then they can install the chuck easily in an hour.

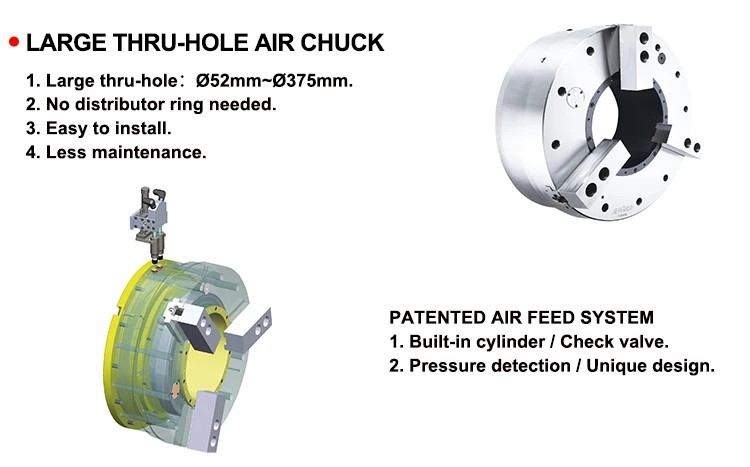

• There is a cylinder in the chuck, when install the chuck, the customer do not need the cylinder and the draw bar but connect the chuck to the oil gyrator at the end of the spindle by the copper pipe.

• It can decrease the weight of the bed and increase the longvity of the lathe.

• Because the middle of the chuck is empty and it can process the bar material and preform workpiece.
