10″ Hydraulic Lathe Chuck with 2 or 3 Jaws vertical type Titanium Alloy/Steel Material OEM ODM Support Available

Short Description:

• Vertical type with baseboard.

• High frequency quenching,improve the surface hardness and wear resistance.

• Repeat positioning accuracy within 0.01mm

• Lasting strong gripping force.

• Hydraulic operation standard.

• This chuck is applicable for machining center, driller and miller.

• 2 jaw,3 jaw and 4 jaw are available,provide custom ervice.


Product Detail

Product Tags

Technical features:

• Durable and Reliable 2/3 jaw lathe chuck with excellent workability

• Wide variety of world standard chuck, high gripping force & stability suit to specific needs

• Standard hydraulic chucks suit to high-mix low-volume manufacturing

• The short cylinder connection confirm to the GB, and the customer do not need to nge the structure of the lathe but need a flange which is the same size of the chuck, and then they can install the chuck easily in an hour.

• There is a cylinder in the chuck, when install the chuck, the customer do not need the cylinder and the draw bar but connect the chuck to the oil gyrator at the end of the spindle by the copper pipe.

• It can decrease the weight of the bed and increase the longvity of the lathe.

• Because the middle of the chuck is empty and it can process the bar material and preform workpiece.

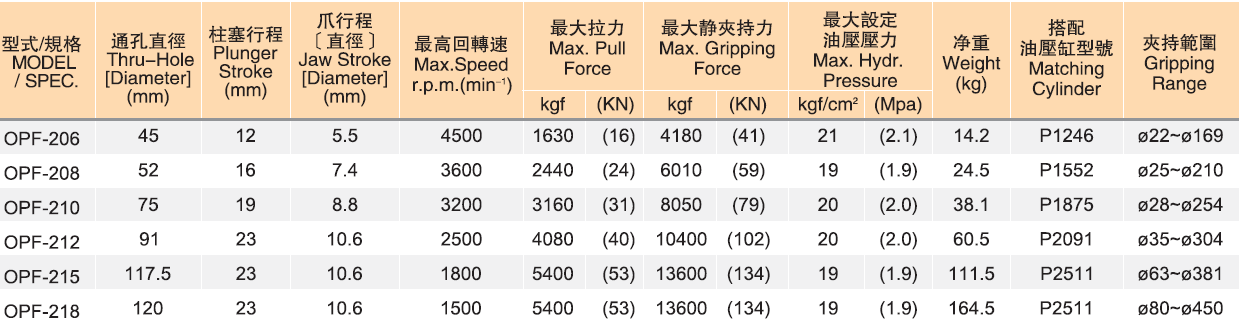

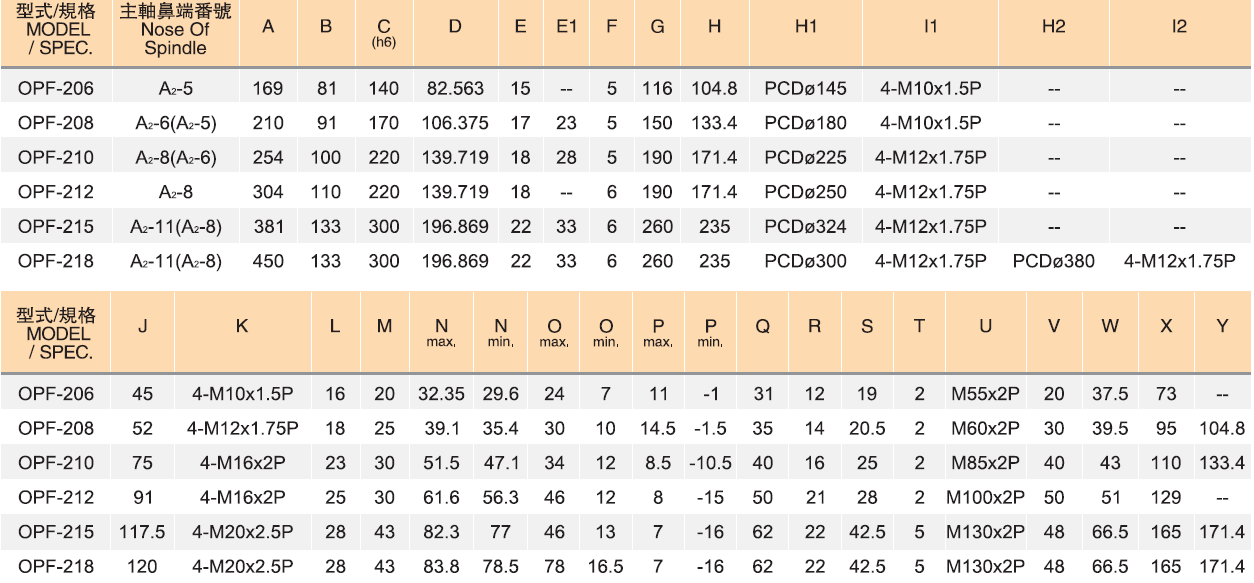

Product Parameters:
