High precision6″ 8″ 10″ 12″ 2 jaw lathe chuck metal Hydraulic chuck for sale

Short Description:

•High frequency quenching,improve the surface hardness and wear resistance.

•Repeat positioning accuracy within 0.01mm

• Lasting strong gripping force.

• Hydraulic operation standard.

• This chuck is applicable for machining center, driller and miller.

• 2 jaw,3 jaw and 4 jaw are available,provide custom ervice.


Product Detail

Product Tags

Technical features:

• Durable and Reliable 2 jaw lathe chuck with excellent workability

• Wide variety of world standard chuck, high gripping force & stability suit to specific needs

• Standard Hydraulic chucks suit to high-mix low-volume manufacturing

• The short cylinder connection confirm to the GB, and the customer do not need to change the structure of the lathe but need a flange which is the same size of the chuck, and then they can install the chuck easily in an hour.

• There is a cylinder in the chuck, when install the chuck, the customer do not need the cylinder and the draw bar but connect the chuck to the oil gyrator at the end of the spindle by the copper pipe.

• It can decrease the weight of the bed and increase the longvity of the lathe.

• Because the middle of the chuck is empty and it can process the bar material and preform workpiece.

.

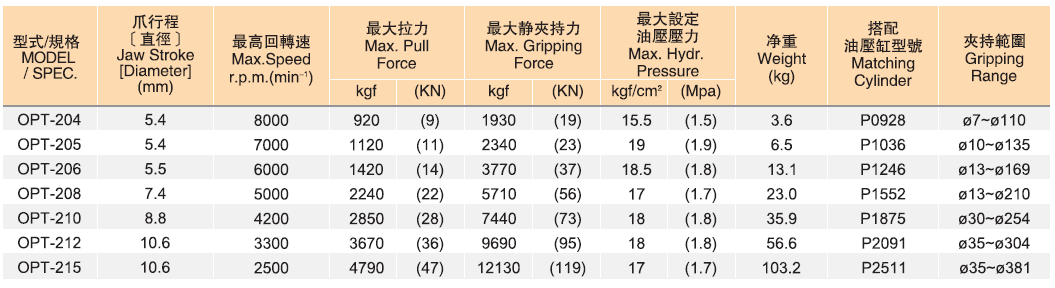

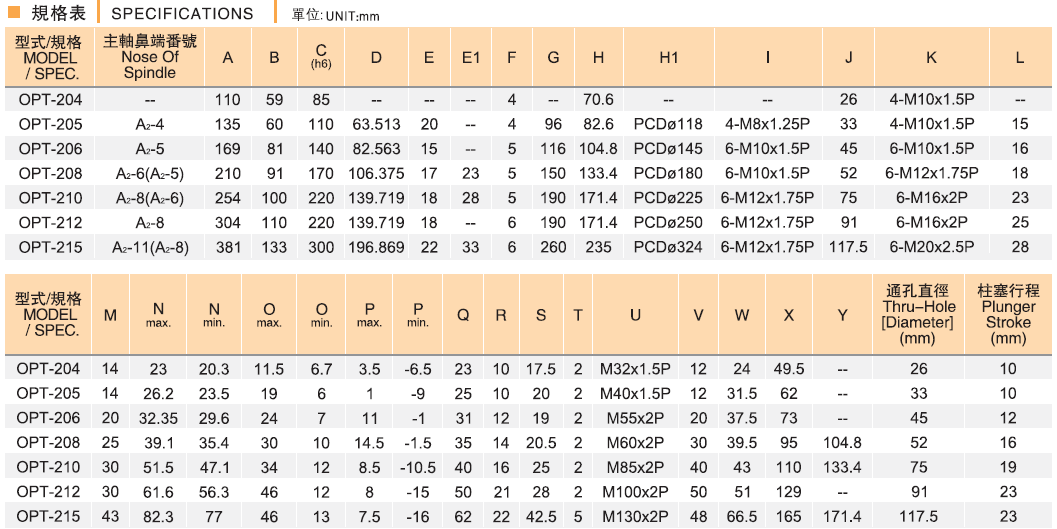

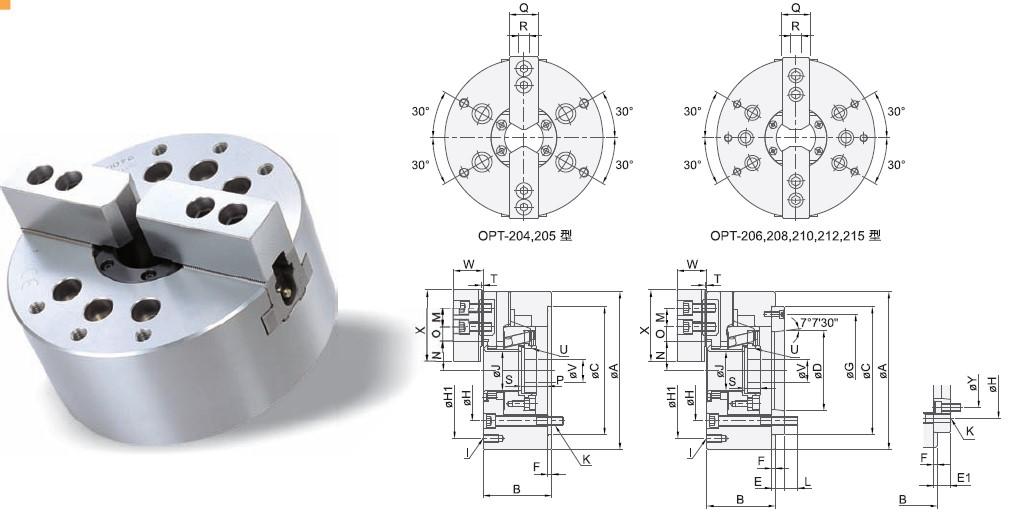

Product Parameters:



About us

Kunshan Liyuanxin Metal Products Co., Ltd. is a company engaged in the manufacture of metal products, metal mold, hardware standard parts sales and other businesses. Specializing in the production of series of products: soft jaws (raw jaws), hard jaws,chucks and so on. Standard Soft Jaws and Non-Standard Soft Jaws for CNC Lathe Chuck Customizable as per requirement.We have much materials such as Aluminium,Brass,Steel,etc. We can customize products per requirement.

Relies on advanced CNC machining center and complete testing method, control all aspects of production and operation according to standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international market.

Our Service

1. reply to customer inquiry within 24 hours.

2.100% checking and inspection before shipment, choose strong packaging and transportation mode suitable for clients to ensure no damage during transportation.

3. Standardized production, strict quality control process and after sale service, ensure customers worry free.
