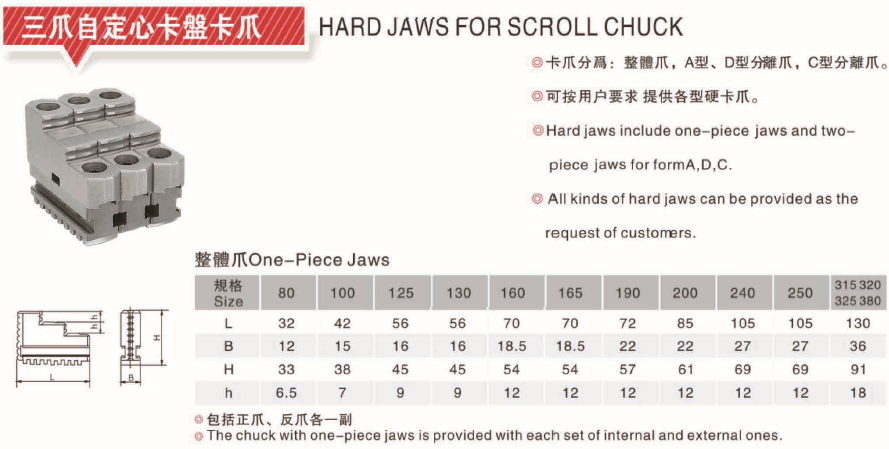

Cheap hard jaws for scroll chuck and self centering manual chuck for sale

Short Description:

1, Made of special alloy steel which is stronger, more fatigure resisting.

2, Mounted with the chuck, the jaws runout between 0.02-0.03mm.

3, Precision ground on teeth to provide a tight fit with the master jaws.

4, Reversible hard jaws is suitable for inside and outside workholding.

5, Extra-fine mill finish on the step surface to provide a smooth contact.

6, A sequential number is stamped on each hard jaws.

Send email to us

Product Detail

Product Tags

Product Description

1.Featured in large clamping force
2.Convenient for installation
3.Applicable for various NC lathes,large meter lathes.

Product Advantage

1.High precision pitch uniform,fastening and clamping.

2.High strength 20cr, more durable,time-saving,labor-saving and efficient.

3.Precision angle machine clamping is more stable.

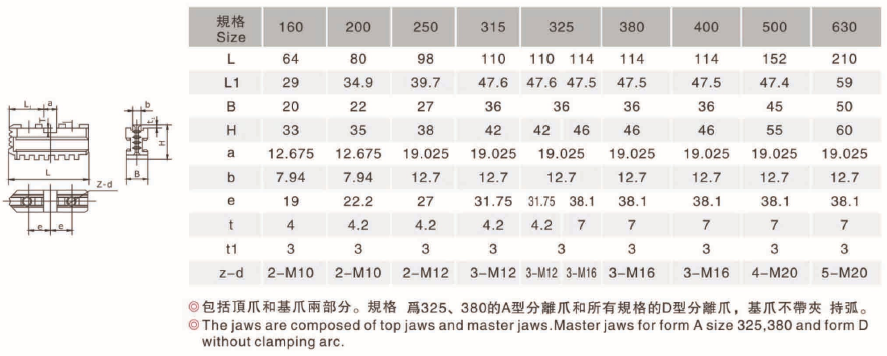

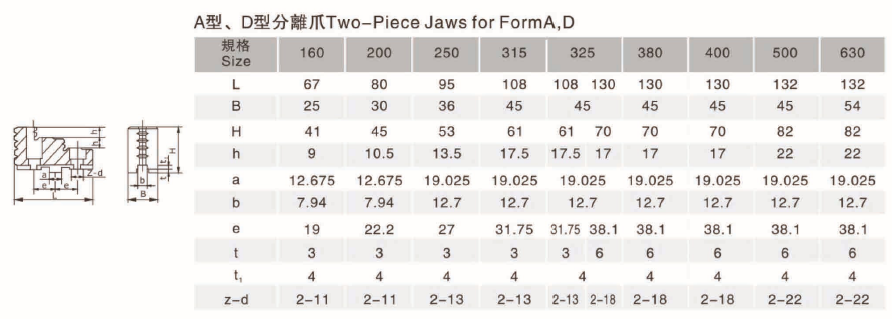

Product parameter

About us

Kunshan Liyuanxin Metal Products Co., Ltd. is a company engaged in the manufacture of metal products, metal mold, hardware standard parts sales and other businesses. Specializing in the production of series of products: soft jaws (raw jaws), hard jaws,chucks and so on. Standard Soft Jaws and Non-Standard Soft Jaws for CNC Lathe Chuck Customizable as per requirement.We have much materials such as Aluminium,Brass,Steel,etc. We can customize products per requirement.

Relies on advanced CNC machining center and complete testing method, control all aspects of production and operation according to standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international market.
